Product Range

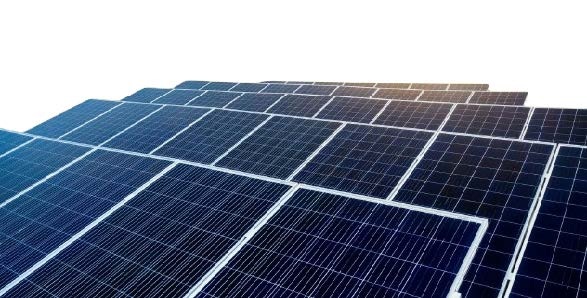

Solar PV Panels
Our high-efficiency solar panels are designed to convert sunlight into electricity, making them ideal for residential, commercial, and industrial applications.
Solar Lighting Solutions
Illuminate spaces with our innovative solar lighting products, ranging from street lights to garden and home lighting, reducing dependence on traditional power sources.

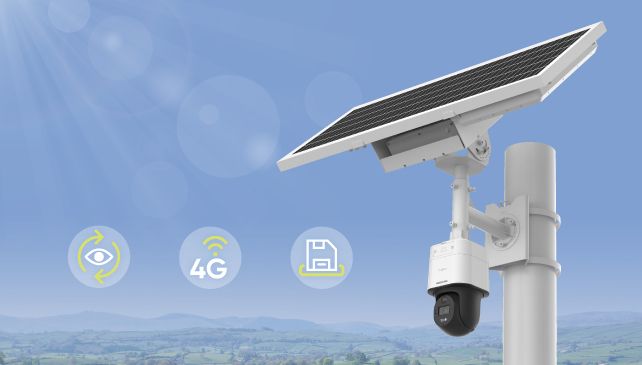

Solar Security Surveillance
Utilising solar energy to power cameras and related equipment for continuous monitoring. Offering flexibility and ability to deploy surveillance where traditional power sources may be impractical.

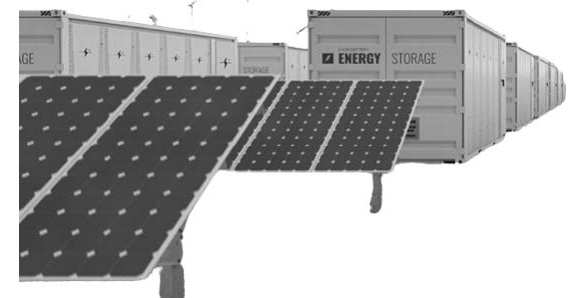

Solar Energy Storage System
Explore our energy storage solutions that maximize the utilization of solar power, ensuring a continuous and reliable energy supply.

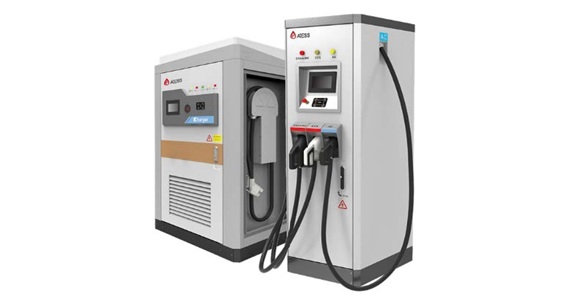

Electric Vehicle (EV) Charging Stations
Powering electric vehicle (EV) by supplying electric power to recharge the battery on an EV vehicle subsequently promoting energy independence & zero carbon emission.

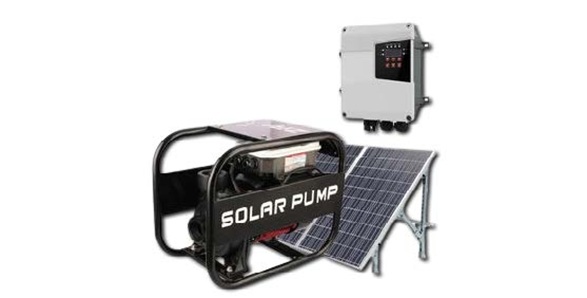

Solar Water Pump System
Offering solar powered water pump via DC electricity from solar PV to pump water from sources like wells, rivers or lakes to a desired location or purposes (water for home, water for livestock and/or water for plants).

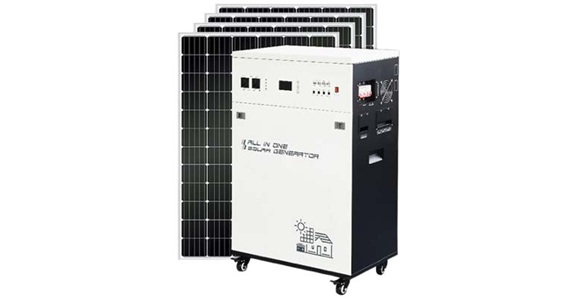

Off-Grid Portable Solar Power Generator
Self-sustaining power system & operates independently. Solar panels to capture sunlight (DC Power) stores the energy in batteries & converts into usable electricity (AC Power) thru inverter. Lightweight, mobile & eco-friendly. Comes with AC outlets, DC outlets & USB ports.
Off-Grid Mounted Solar Power Supply
A dedicated Solar Power Supply mounted on pole usually to provide electricity for remote data collecting & purposes includes weather station, water level monitoring & alarm system. Built in with antenna & wireless connection for real-time data transmitting. Self-sufficiency, versatile mounting options & sustainability.

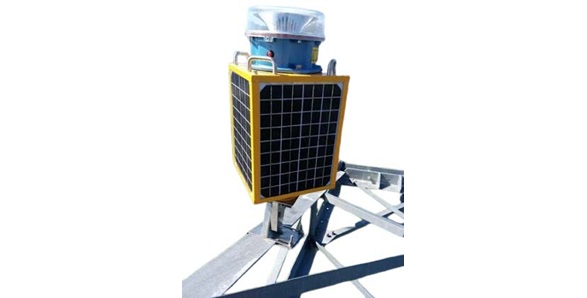

Solar Power Aviation Obstruction Light
Safety device used to mark tall structures; communication towers / buildings, to alert pilots and collisions. Solar panel charge internal batteries allowing the lights to function throughout the night / in low visibility conditions. Self-sustainability, automatic operation, low maintenance & durability.
Solar Products

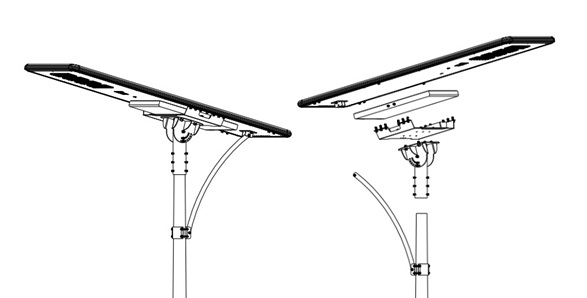

Integrated Solar Street Light
The design of the integrated solar street light absorbs the inspiration and energy from the universe, and combines today’s best green energy portfolio (solar energy, semiconductor LED light source, dedicated battery for street lights).
It uses excellent practical control technology, such as micro controller, thermal infrared human body induction etc., and combines with the simple integrated structure design, perfect achieve higher brightness with lower power consumption, long life span and free maintenance, excellent waterproof and heat dissipation, at the same time with convenient installation.
T5-SL100 SL120
T5-SLM100 SLM40
Features
Solar Panel
• Quality solar cells with high solar energy conversion
• Mono-crystalline silicon solar cells
• Lifespan up to 25 years
LED
• Customized SMD 5050 high brightness LED, efficiency up to 170 Lm/W
• Up to 70% energy saving with full compliance to road lighting safety standards compared to HPS & MH
Controller
• MPPT charging mode with high charging efficiency
• Protection for over charge, over discharge, over
Battery
• LiFePO4 Battery
• Long service life
• Safety & Reliability
| Model | T5-SL80 | T5-SL100 | T5-SL120 | |
|---|---|---|---|---|
| Luminaire | Wattage (W) | 80W | 100W | 120W |
| LED Chip | ||||
| Lumen Output (lm) ±5% | 15,600 lm | 19,500 lm | 23,400 lm | |
| Lumen per watt ±5% | ||||
| CCT Range | ||||
| Colour Render Index (CRI) | ||||
| Beam Angle | ||||
| Material | ||||
| Fixture Dimension | 1,638*543*110mm | 1,818*698*110mm | 1,818*698*110mm | |
| Spigot Arm Size (I/D) | Ø 83mm | Ø 96mm | Ø 96mm | |
| SL Pole (O/D) | Ø 76mm | Ø 89mm | Ø 89mm | |
| Recommend Install Height | 8m-9m | 9m-10m | 10m-12m | |
| Ingress Protection (IP) | ||||
| Working Temperature | ||||
| Gross Weight (incl. bracket) | 42 kgs | 56 kgs | 58 kgs | |
| Solar Panel | Solar Panel Type | |||
| Solar Panel (Wp) | 36V 150Wp | 36V 240Wp | 36V 240Wp | |
| Solar Charging Time (Peak Sun Hour Per Day) | ||||
| Cells Efficiency | ||||
| Lifetime | 25 Years | |||
| Controller | Brand | |||
| Lighting Mode | 2 hours 60% brightness (11PM – 1AM) 6 hours 40% brightness (1AM – 7AM) |
|||
| Ingress Protection (IP) | ||||
| Solar System Voltage (V) | ||||
| Battery | Type | |||
| Battery Capacity | 1,536Wh | 25.6V 75AH 1,920Wh | 25.6V 90AH 2,304Wh |
|
| Days of Autonomy | ||||
| Daily Consumption | 608 Wh | 760 Wh | 912 Wh | |
| Lifetime | ≥ 50,000 hrs | |||

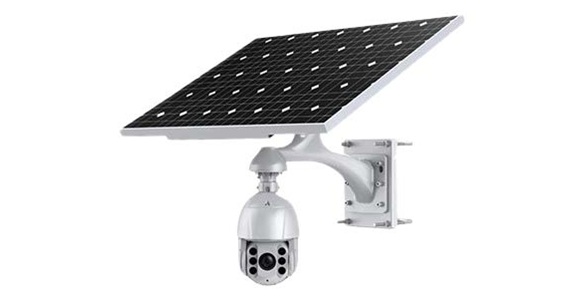

CCTV Solar

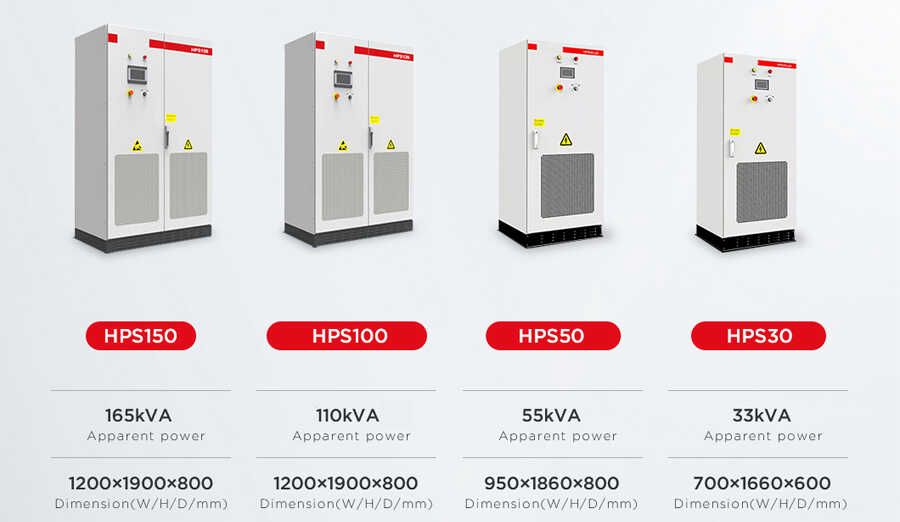

Solar On Grid & Off Grid System
Teraju Lima (M) Sdn Bhd collaboration with a leading company that produces technology products related to green energy products, renewable energy, which is the company ATEES products that are used according to standards and have been used all over the world.
